Queues are fundamental data structures in computer science, adhering to the "First In, First Out" (FIFO) principle. They're like waiting lines, ensuring the element that arrives first gets processed first. In C programming, queues can be implemented using arrays, providing efficient memory access and ease of use. This blog post dives into the essential queue operations using arrays in C:
1. Initialization:
The first step is to create an array to hold the queue elements. You'll also need variables to track the front and rear of the queue:
#include <stdio.h>
#define MAX_SIZE 100 // Define the maximum size of the queue
int queue[MAX_SIZE];
int front = -1; // Initially, the queue is empty
int rear = -1;
In this example, queue is an array with a maximum size of MAX_SIZE. front and rear pointers are initialized to -1, indicating an empty queue.
2. isEmpty:
This function checks if the queue is empty:
int isEmpty() {
return front == -1;
}
If both front and rear are -1, it implies the queue hasn't been initialized or all elements have been removed.
3. isFull:
This function checks if the queue is full:
int isFull() {
return rear == MAX_SIZE - 1;
}
If rear reaches the end of the array (index MAX_SIZE - 1), the queue is full and cannot accommodate more elements.
4. enqueue (add):
This function adds an element to the back (rear) of the queue:
C
void enqueue(int data) {
if (isFull()) {
printf("Queue Overflow\n");
return;
}
if (front == -1) { // Queue is initially empty
front = 0;
}
rear++;
queue[rear] = data;
}
First, we check if the queue is full using the isFull function.
If the queue is not full, we handle the case where the queue is initially empty (both front and rear are -1). In this case, we set front to 0.
We increment rear to point to the new last element position in the array.
Finally, we assign the data to the array location pointed to by rear.

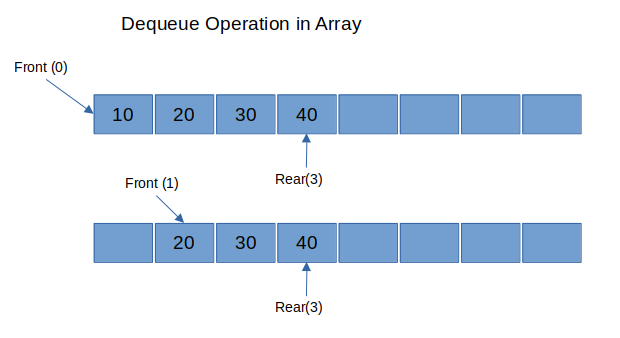

5. dequeue (remove):
This function removes and returns the element from the front of the queue:
int dequeue() {
if (isEmpty()) {
printf("Queue Underflow\n");
return -1; // Indicate error or a sentinel value
}
int data = queue[front];
if (front == rear) { // Only one element in the queue
front = rear = -1;
} else {
front++;
}
return data;
}
We check if the queue is empty using the isEmpty function.
If the queue is not empty, we store the element at the front (pointed to by front) in a temporary variable data.
We then check if there's only one element remaining in the queue (both front and rear point to the same index). If so, we reset both front and rear to -1, indicating an empty queue.
Otherwise, we simply increment front to point to the new front element.
Finally, we return the removed element (data).
6. Example Usage:
int main() {
enqueue(10);
enqueue(20);
enqueue(30);
printf("Dequeued element: %d\n", dequeue());
printf("Dequeued element: %d\n", dequeue());
return 0;
}
This code snippet demonstrates how to use the queue operations. It enqueues three elements (10, 20, 30) and then dequeues two elements, printing their values.
Beyond the Basics:
While arrays offer efficient memory access, their size is fixed. For scenarios where the queue size might vary dynamically, linked lists provide a more flexible alternative. However, for situations with a predetermined queue size and performance as a priority, array-based queue implementation can be a valuable tool in your C programming arsenal.
Remember:
Always handle error conditions like queue overflow and underflow.
Consider using appropriate data types for
Queues are fundamental data structures in computer science, adhering to the "First In, First Out" (FIFO) principle. They're like waiting lines, ensuring the element that arrives first gets processed first. In C programming, queues can be implemented using arrays, providing efficient memory access and ease of use. This blog post dives into the essential queue operations using arrays in C:
